10004B-604 PUSH LOC HOSE END 287-04-04
$3.27
In stock: 37 available
1
Product Details
Details

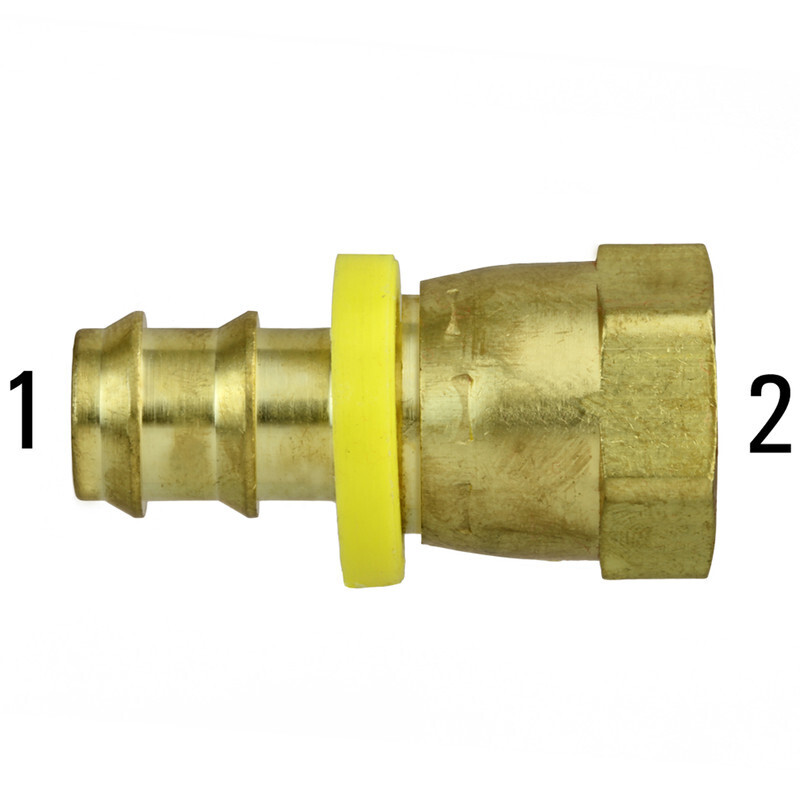

• Push-Lock Hose Barb - Female JIC/SAE "Dual-Seat" Swivel
• HS x FJX/SAE
• 1st) 1/4" Hose Barb
• 2nd) 1/4" Female JIC/SAE Swivel (7/16 - 20 Thread)
• Brass with a "Yellow" Collar (Hose Stop)
• Reusable: No Clamp or Ferrule Required
• Application: Use Only Push-Lock Hose
• PCC World-Class Quality Process
• Pressure Rating: Hose Dependant
• Temperature Range: Hose Dependant
• This "Dual-Seat" Swivel is possible because the 37° JIC Flare and the
45° SAE Flare use the same threads except in the 3/8" and 3/4" sizes.
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
• HS x FJX/SAE
• 1st) 1/4" Hose Barb
• 2nd) 1/4" Female JIC/SAE Swivel (7/16 - 20 Thread)
• Brass with a "Yellow" Collar (Hose Stop)
• Reusable: No Clamp or Ferrule Required
• Application: Use Only Push-Lock Hose
• PCC World-Class Quality Process
• Pressure Rating: Hose Dependant
• Temperature Range: Hose Dependant
• This "Dual-Seat" Swivel is possible because the 37° JIC Flare and the
45° SAE Flare use the same threads except in the 3/8" and 3/4" sizes.
Warning: This Product can expose you to chemicals including Lead, which is known to the State of Californina to cause cancer, birth defects or other reproductive harm.
For more information go to (www.p65warnings.ca.gov).
Crossover Part Numbers
Parker Ref.: 10682-4-4 / 10882-4-4
Specs
Fluid Product: ConnectionsProduct Type: Hydraulic Hose FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 1/4"
1 - Thread Type: PL Hose Barb1 - Size: -04 (1/4")2 - Thread Type: Brass Female JIC / SAE Swivel - Dual Seat2 - Size: -04 (1/4")2 - Thread: 7/16 - 20A - Length: 1.50
W - Nut Hex: 9/16Working PSI: See HoseBurst PSI: See HoseWorking BAR: See HoseBurst BAR: See Hose
