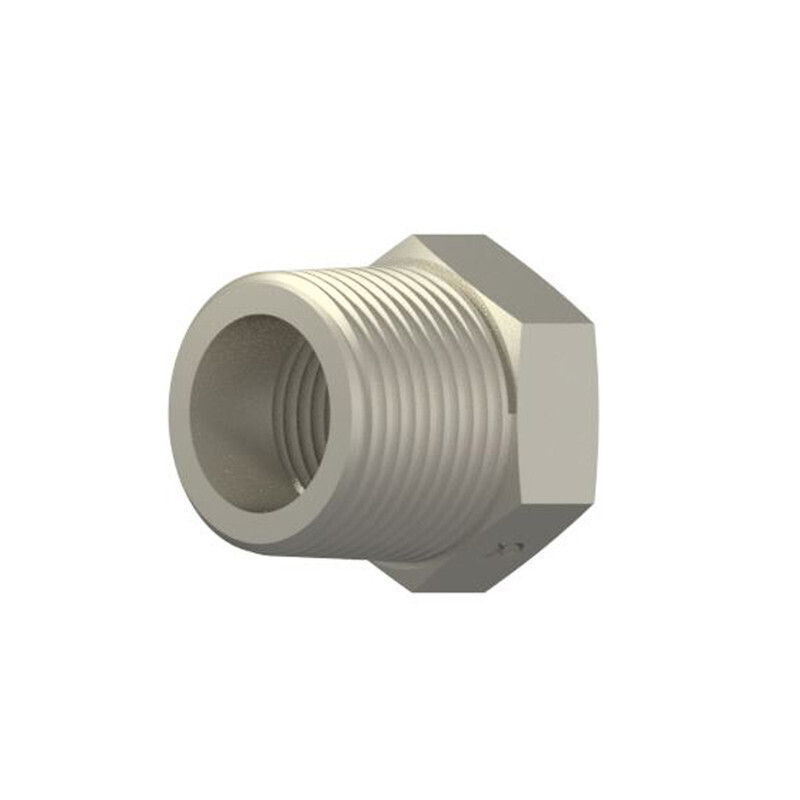

C3109X16X8 MP x FP - Reducer Bushing - Steel 5406-16-08
$6.78
In stock: 6 available
1
Product Details
Details
• Reducer Bushing
• MP x FP Bush
• 1st) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 4,500 PSI (4:1 Burst)
• Burst Pressure 18,000 PSI
• MP x FP Bush
• 1st) 1" Male NPTF Pipe (1 - 11 1/2 Thread)
• 2nd) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 4,500 PSI (4:1 Burst)
• Burst Pressure 18,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2081-16-8SEaton-Weatherhead Ref: C3109x16x8
Parker Ref: 1 x 1/2 PTR-SSAE Ref: 140140
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -16 (1")1 - Thread: 1 - 11 1/22 - Thread Type: Female Pipe2 - Size: -08 (1/2")2 - Thread: 1/2 - 14C - Hex: 1 3/8
L - Length: 1.36Working PSI: 4,500Burst PSI: 18,000Working BAR: 310Burst BAR: 1,241
