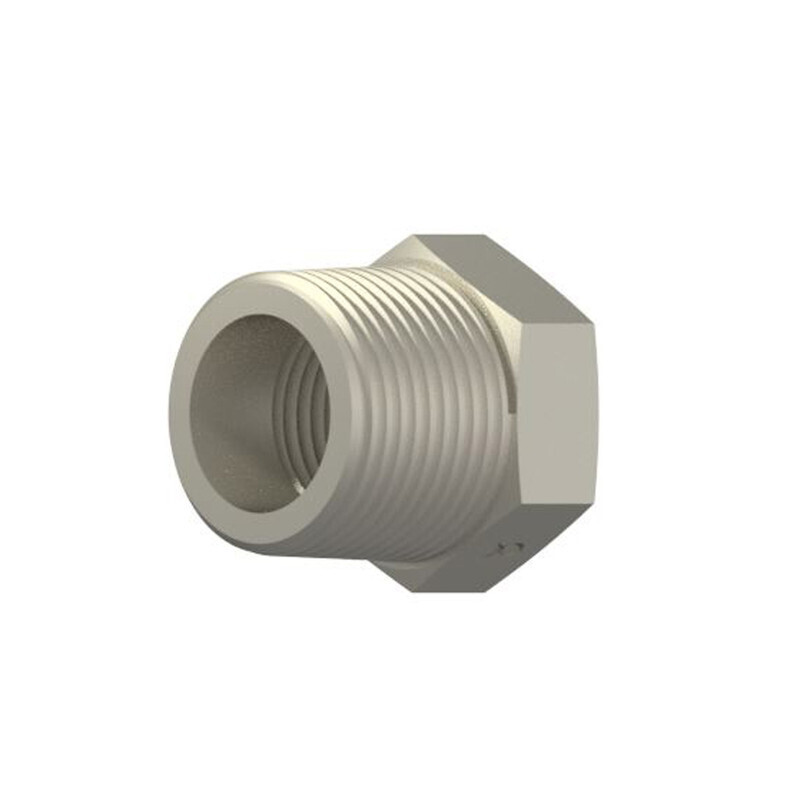

C3109X20X12 MP x FP - Reducer Bushing - Steel 5406-20-12
$12.96
In stock: 5 available
1
Product Details
Details
• Reducer Bushing
• MP x FP Bush
• 1st) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• 2nd) 3/4" Male NPTF Pipe (3/4 - 14 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
• MP x FP Bush
• 1st) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• 2nd) 3/4" Male NPTF Pipe (3/4 - 14 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 3,000 PSI (4:1 Burst)
• Burst Pressure 12,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2081-20-12SEaton-Weatherhead Ref: C3109x20x12
Parker Ref: 1 1/4 x 3/4 PTR-SSAE Ref: 140140
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -20 (1 1/4")1 - Thread: 1 1/4 - 11 1/22 - Thread Type: Female Pipe2 - Size: -12 (3/4")2 - Thread: 3/4 - 14C - Hex: 1 3/4
L - Length: 1.47Working PSI: 3,000Burst PSI: 12,000Working BAR: 207Burst BAR: 827
Save this product for later
C3109X20X12 MP x FP - Reducer Bushing - Steel 5406-20-12
