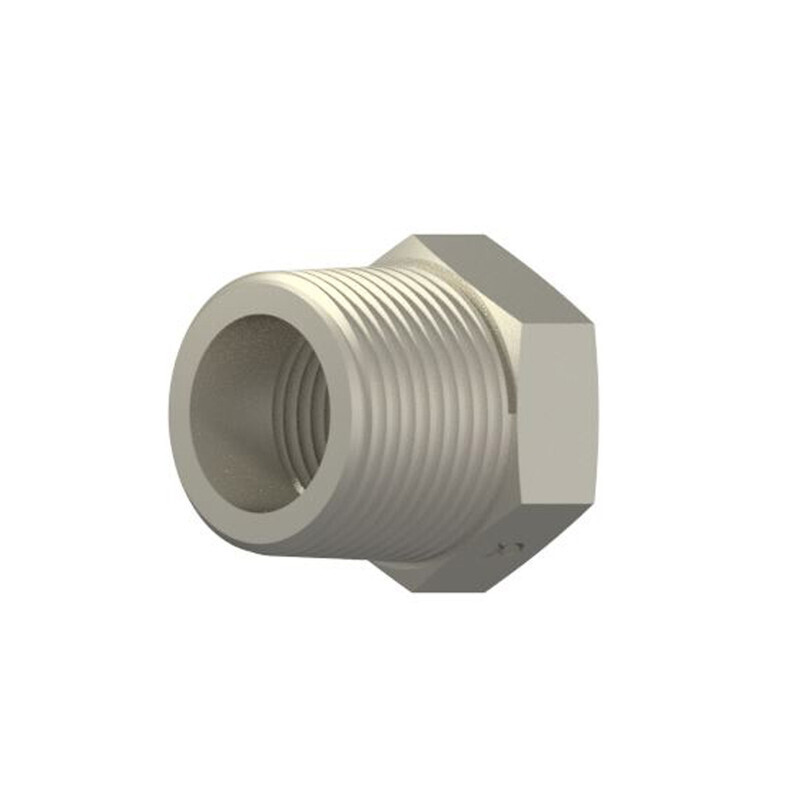

C3109X24X20 MP x FP - Reducer Bushing - Steel 5406-24-20
$13.44
In stock: 2 available
1
Product Details
Details
• Reducer Bushing
• MP x FP Bush
• 1st) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• 2nd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
• MP x FP Bush
• 1st) 1-1/2" Male NPTF Pipe (1 1/2 - 11 1/2 Thread)
• 2nd) 1-1/4" Male NPTF Pipe (1 1/4 - 11 1/2 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 2,500 PSI (4:1 Burst)
• Burst Pressure 10,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2081-24-20SEaton-Weatherhead Ref: C3109x24x20
Parker Ref: 1 1/2 x 1 1/4 PTR-SSAE Ref: 140140
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -24 (1 1/2")1 - Thread: 1 1/2 - 11 1/22 - Thread Type: Female Pipe2 - Size: -20 (1 1/4")2 - Thread: 1 1/4 - 11 1/2C - Hex: 2"
L - Length: 1.57Working PSI: 2,500Burst PSI: 10,000Working BAR: 172Burst BAR: 689
