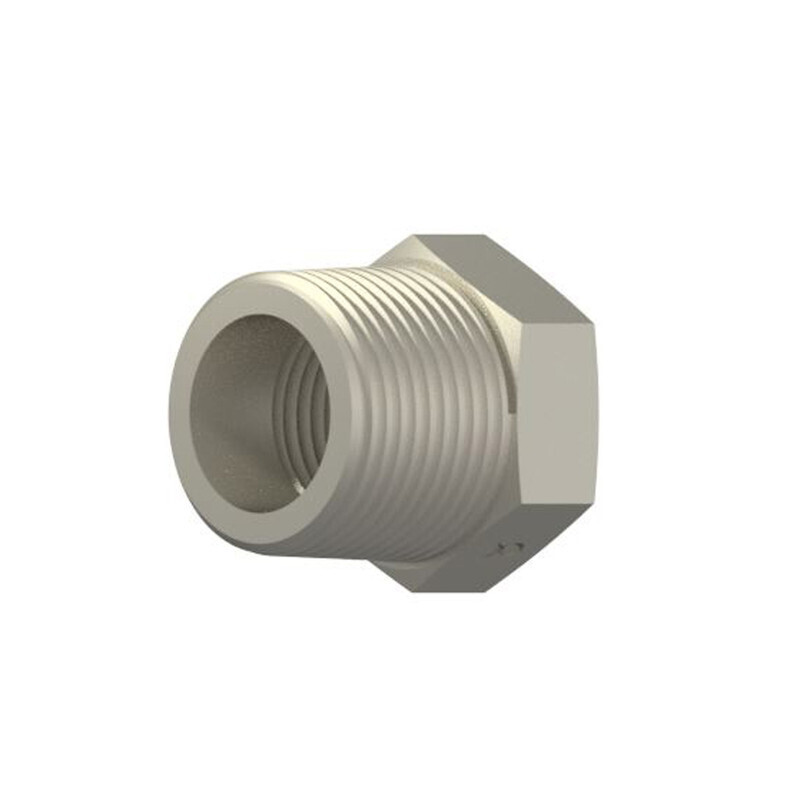

C3109X8X2 MP x FP - Reducer Bushing - Steel 5406-08-02
$3.51
In stock: 21 available
1
Product Details
Details
• Reducer Bushing
• MP x FP Bush
• 1st) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• MP x FP Bush
• 1st) 1/2" Male NPTF Pipe (1/2 - 14 Thread)
• 2nd) 1/8" Male NPTF Pipe (1/8 - 27 Thread)
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 140140
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2081-8-2SEaton-Weatherhead Ref: C3109x8x2
Parker Ref: 1/2 x 1/8 PTR-SSAE Ref: 140140
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: Straight1 - Thread Type: Male Pipe
1 - Size: -08 (1/2")1 - Thread: 1/2 - 142 - Thread Type: Female Pipe2 - Size: -02 (1/8")2 - Thread: 1/8 - 27C - Hex: 7/8
L - Length: 1.10Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
