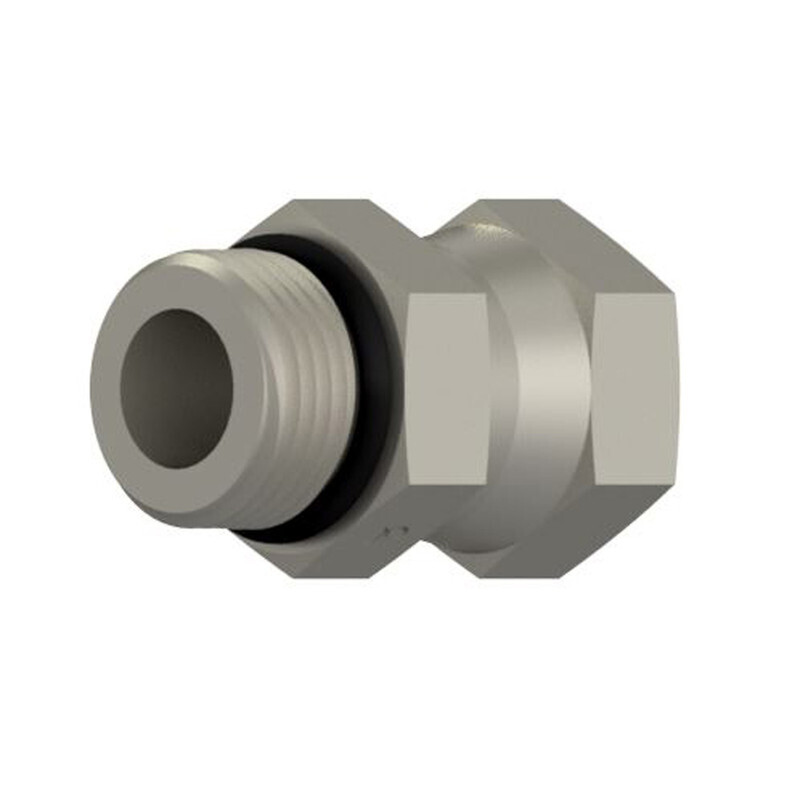

C5216X12 MB x FJX - Male O-Ring Boss x Female JIC Swivel - Steel 6402-12-12
$9.90
In stock: 79 available
1
Product Details
Details
• Male O-Ring Boss x Female JIC Swivel
• MB x FJX
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MB x FJX
• 1st) 3/4" Male 37° JIC Flare (1 1/16 - 12 Thread)
• 2nd) 3/4" Female JIC Swivel (1 1/16 - 12 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2266-12-12SEaton-Weatherhead Ref: C5216x12
Parker Ref: 12 F65OX-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/4"1 - Thread Type: Male ORB
1 - Size: -12 (3/4")1 - Thread: 1 1/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -12 (3/4")2 - Thread: 1 1/16 - 12C - Body Hex: 1 1/4C1 - Nut Hex: 1 1/4
L - Length: 2.07Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
