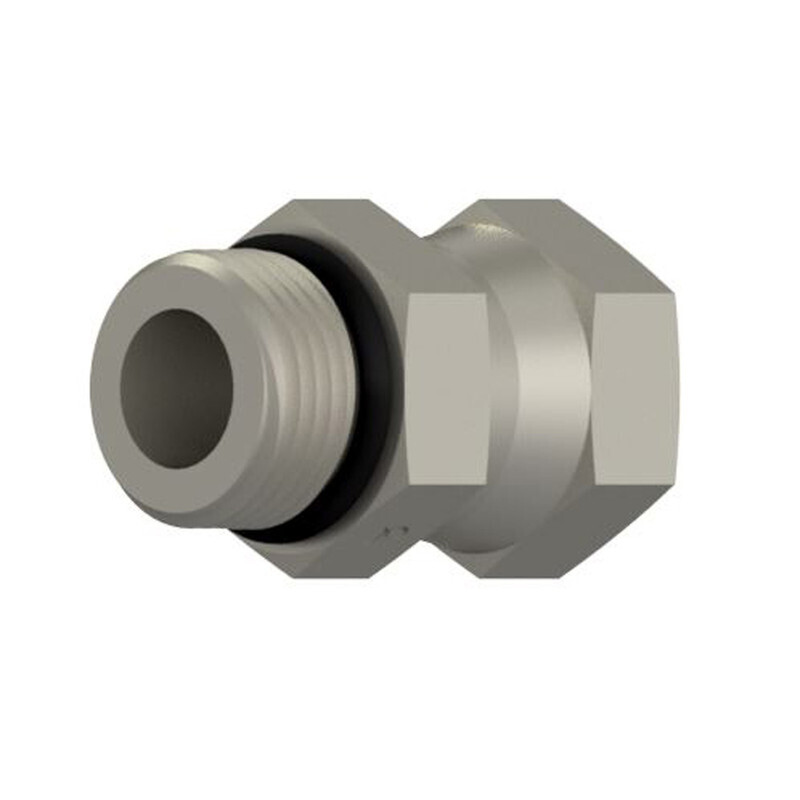

C5216X6X8 MB x FJX - Male O-Ring Boss x Female JIC Swivel - Steel 6402-08-06
$5.28
In stock: 110 available
1
Product Details
Details
• Male O-Ring Boss x Female JIC Swivel
• MB x FJX
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
• MB x FJX
• 1st) 1/2" Male 37° JIC Flare (3/4 - 16 Thread)
• 2nd) 3/8" Female JIC Swivel (9/16 - 18 Thread)
• Black Buna-N 90 Durometer O-Ring
• Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 Rules - Dimensions NOT Specified
• Working Pressure 5,000 PSI (4:1 Burst)
• Burst Pressure 20,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 2266-6-8SEaton-Weatherhead Ref: C5216x6x8
Parker Ref: 6-8 F65OX-S
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: StraightTube O.D.: 3/8"1 - Thread Type: Male ORB
1 - Size: -08 (1/2")1 - Thread: 3/4 - 162 - Thread Type: Female JIC Swivel2 - Size: -06 (3/8")2 - Thread: 9/16 - 18C - Body Hex: 7/8C1 - Nut Hex: 11/16
L - Length: 1.57Working PSI: 5,000Burst PSI: 20,000Working BAR: 345Burst BAR: 1,379
