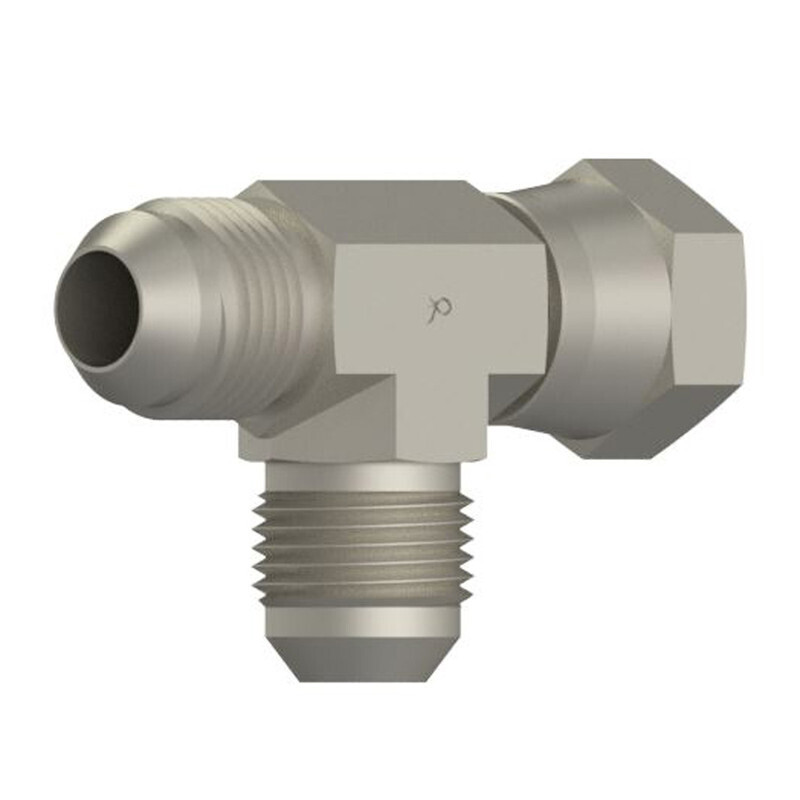

C5706X16 MJ x FJX x MJ - Swivel Nut Run Tee - Steel 6602-16-16-16-4
$26.58
In stock: 126 available
1
Product Details
Details
• Swivel Run Tee
• MJ x FJX x MJ
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• 3rd) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070432
• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI
• MJ x FJX x MJ
• 1st) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• 2nd) 1" Female JIC Swivel (1 5/16 - 12 Thread)
• 3rd) 1" Male 37° JIC Flare (1 5/16 - 12 Thread)
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J514 # 070432
• Working Pressure 3,600 PSI (4:1 Burst)
• Burst Pressure 14,400 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: 203102-16-16SEaton-Weatherhead Ref: C5706x16
Parker Ref: 16 R6X-SSAE Ref: 070432
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: TeeTube O.D.: 1"1 - Thread Type: Male JIC1 - Size: -16 (1")
1 - Thread: 1 5/16 - 122 - Thread Type: Female JIC Swivel2 - Size: -16 (1")2 - Thread: 1 5/16 - 123 - Thread Type: Male JIC3 - Size: -16 (1")3 - Thread: 1 5/16 - 12C - Nut Hex: 1 1/2
M - Leg Length: 1.81N - Leg Length: 2.00Y - Flats: 1 5/16Working PSI: 3,600Burst PSI: 14,400Working BAR: 248Burst BAR: 993
