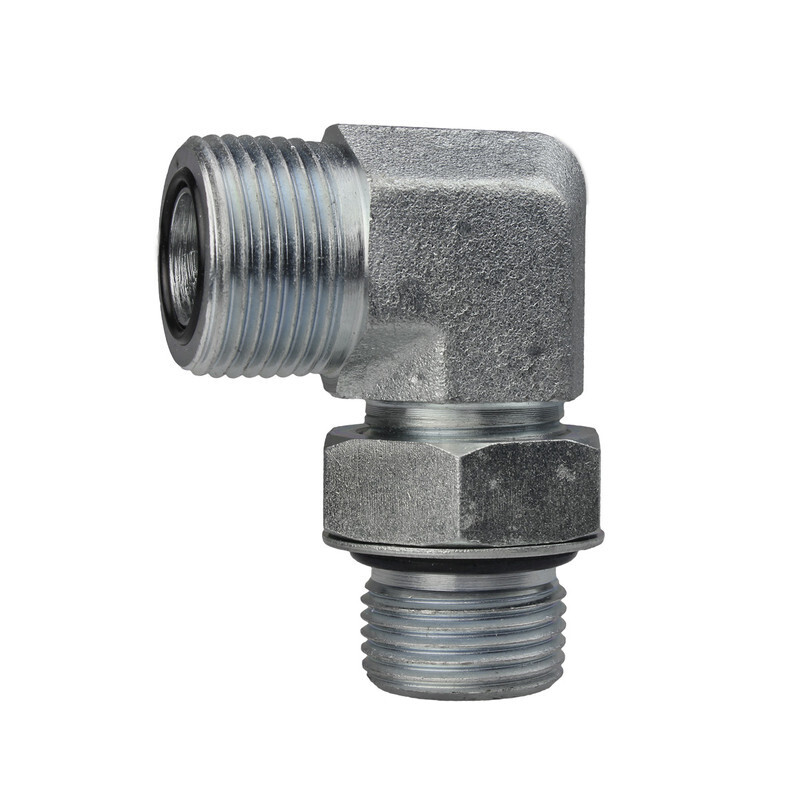

FS-6801-12-08-4 OFS x MB 90° - OFS Straight Thread Elbow - Steel
$12.12
In stock: 45 available
1
Product Details
Details
• OFS Straight Thread Elbow
• OFS x MB 90°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 1/2" Male O-Ring Boss (3/4 - 16 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520220
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
• OFS x MB 90°
• 1st) 3/4" Male O-Ring Face Seal (1 3/16 - 12 Thread)
• 2nd) 1/2" Male O-Ring Boss (3/4 - 16 Thread)
• Adjustable Nut/Washer/O-Ring
• Black Buna-N 90 Durometer O-Rings
• Forged Carbon Steel
• RoHS Compliant CR6 Free (Clear Zinc Trivalent) Plating
• PCC World-Class Quality Process
• Made to SAE J1453 # 520220
• Working Pressure 6,000 PSI (4:1 Burst)
• Burst Pressure 24,000 PSI
Crossover Part Numbers
Eaton-Aeroquip Ref: FF1868T1208SEaton-Weatherhead Ref: 4515x12x8
Parker Ref: 12-8 C5OLO-SSAE Ref: 520220
Specs
Fluid Product: ConnectionProduct Type: FittingsMedia: HydraulicMaterial: SteelOrientation: 90° ElbowTube O.D.: 3/4"1 - Thread Type: Male OFS
1 - Size: -12 (3/4")1 - Thread: 1 3/16 - 122 - Thread Type: Male ORB2 - Size: -08 (1/2")2 - Thread: 3/4 - 16C - Nut Hex: 15/16M - Leg Length: 1.47
N - Leg Length: 1.84Y - Flats: 1 3/16Working PSI: 6,000Burst PSI: 24,000Working BAR: 414Burst BAR: 1,655
